Description

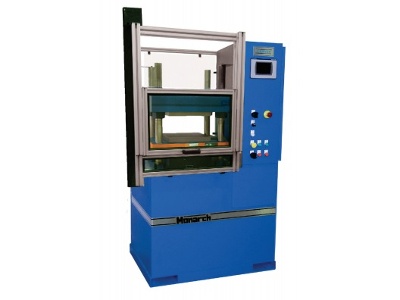

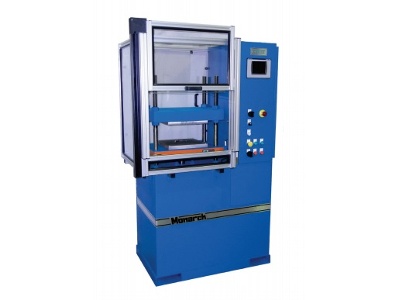

The Monarch Series Proppant Crush Test Presses from Carver meet the critical demands of ISO 13503-2:2006 with unsurpassed cycle repeatability. The proportional hydraulic system is capable of applying a constant rate of 13.8 MPa/min. (2000 PSI min.) from 2 ton to 40 ton clamp force within a ±2.5% deviation. The operator interface allows easy setup of press control parameters and includes ample recipe storage.
The Proppant Crush Test Presses are available in two models :
CMG28-12-PCR and
CMG40-12-PCR
Features:
- Compression force: 2 to 40 ton
-
Minimum 1,275 psi on a 2" diameter crush die
-
Maximum 25,000 psi on a 2" diameter crush die
-
Hardened plates: 12” L-R x 12” F-B fully guided platens to ensure parallelism
-
Positive stop on platens for centering the crush die
-
Open daylight: 6” to 12”
-
Cylinder stroke: 6”
-
Self-contained hydraulic system
-
Available with and without 2” ID crush die (compatible with ISO 13503-2)
- “Mini” ViewPoint control system including -
- Allen Bradley programmable controller
- PanelView Touch screen interface
- Closed-loop control of clamp pressure
- Real time graphical display of process parameters
- Recipe storage (up to 30 recipes of 24 segments)
- Two hand close buttons
- Polycarbonate safety guards around the clamp area with manual sliding interlocked operator gate
