Laboratory Mill

Laboratory mills, used primarily for sample prep prior to analysis, use particle size reduction (comminution) to grind or homogenize wet, dry, hard, soft, elastic, brittle, and fibrous materials. Mills and grinders are used in labs in widely varying scientific areas, including chemistry, pharmaceuticals, food analysis, materials testing, and life science. Disk, hammer, mortar, planetary ball, rotor, and cutting mills are available to achieve coarse, mid-range, and fine results, all the way down to the nano range, <0.1 µm. Cryogenic mills, or freezer mills, are a type of unit that freezes a material prior to reducing its particle size.

What to consider when choosing a laboratory mill?

When purchasing a mill, power, speed, and cleanability are useful parameters; however, it is also important to keep in mind the instrument’s throughput, reproducibility, and yield, as well as the option of a cooling system, if necessary.

Compare and request a quote for laboratory mills from various manufacturers:

CompanyRETSCH GmbHRETSCH GmbHRETSCH GmbHRETSCH GmbHRETSCH GmbHRETSCH GmbH
ItemPlanetary Ball Mill PM 100CryoMillCyclone Mill TWISTERCutting Mill SM 300Knife Mill GRINDOMIX GM 300Mixer Mill MM 400
Catalog NumberPM 100CryoMillTwisterSM 300GM 300MM 400
Price

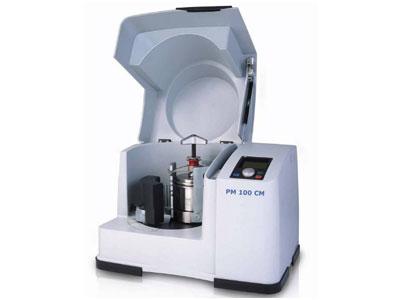

DescriptionPlanetary Ball Mills are used wherever the highest degree of fineness is required. Apart from the classical mixing and size reduction processes, the mills also meet all the technical requirements for colloidal grinding and have the energy input necessary for mechanical alloying processes. The ...The CryoMill is tailored for cryogenic grinding. The grinding jar is continually cooled with liquid nitrogen from the integrated cooling system before and during the grinding process.

Thus the sample is embrittled and volatile components are preserved. The liquid nitrogen circulates through the ...

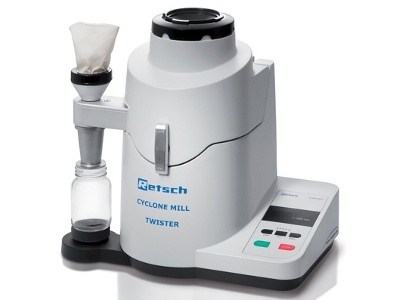

The cyclone mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the ...Cutting mills are suitable for the grinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products. The new Cutting Mill SM 300 excels especially in the tough jobs where other cutting mills fail.

The high torque of the new 3 kW drive with RES technology (additional ...

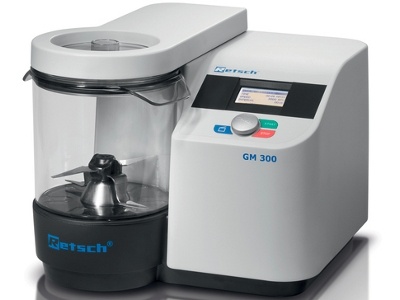

The new knife mill GRINDOMIX GM 300 is the ideal instrument for the grinding and homogenization of foodstuffs. It allows to process sample volumes up to 4.5 liters quickly and reproducibly.

With four sharp, robust blades and a powerful motor which can reach temporary peaks of 3 kW, it is ideal for ...
The mixer mill MM 400 is a compact versatile bench-top unit, which has been developed specially for dry, wet and cryogenic grinding of small amounts of sample.

It can mix and homogenize powders and suspensions in only a few seconds. It is also perfectly suitable for the disruption of biological ...
PrincipleImpact and FrictionImpact and FrictionImpact and FrictionShearing and CuttingCuttingImpact and Friction
Sample Size< 10 mm< = 8 mm<10 mm< 60 x 80 mm~ 130 mm< = 8 mm
Sample TypeSoft, Hard, Brittle or Fibrous - Dry or WetHard, Medium-Hard, Soft, Brittle, Elastic or FibrousFibrous or SoftSoft, Medium-Hard, Tough, Elastic or FibrousSoft, Medium-Hard, Elastic, Containing Water/Fat/Oil, Dry or FibrousHard, Medium-Hard, Soft, Brittle, Elastic or Fibrous
ApplicationsPulverizing, Mixing, Homogenizing and Colloidal Milling: Agriculture, Biology, Chemistry / Plastics, Construction Materials, Engineering / Electronics, Environment / Recycling, Geology / Metallurgy, Glass / Ceramics, Medicine / PharmaceuticalsSize Reduction, Mixing, Homogenization, Cell Disruption and Cryogenic Grinding: Agriculture, Biology, Chemistry / Plastics, Construction Materials, Engineering / Electronics, Environment / Recycling, Food, Geology / Metallurgy, Glass / Ceramics, Medicine / PharmaceuticalsGrinding Prior to NIR Analysis: Agriculture, Foods / Feeds, Medicine / PharmaceuticalsSize Reduction by Cutting: Agriculture, Biology, Chemistry / Plastics, Engineering / Electronics, Environment / Recycling, Food, Medicine / PharmaceuticalsSize Reduction, Homogenization and Mixing: Agriculture, Biology, Food, Medicine / PharmaceuticalsSize Reduction, Mixing, Homogenization, Cell Disruption and Cryogenic Grinding: Agriculture, Biology, Chemistry / Plastics, Construction Materials, Engineering / Electronics, Environment / Recycling, Food, Geology / Metallurgy, Glass / Ceramics, Medicine / Pharmaceuticals
Speed100 to 650 min-15 to 30 Hz10,000 to 14,000 min-1700 to 3000 min-1500 to 4000 min-13 to 30 Hz
Rotor TypeGrinding Jar and BallsGrinding Jar and BallsTWISTER rotorParallel Section Rotor and 6-Disc RotorStainless steel knife, knife with titanium-niob coatingGrinding Jar and Balls
Final Fineness< 1 um or < 0.1 um for Colloidal Grinding~ 5 um< 500 um0.25 to 20 mm< 300 um~ 5 um
Get Quote
