Dry Scroll Vacuum Pump (Scroll Pump)

Many pump designs can become bulky, noisy, and require spring suspension in order to operate. A dry scroll vacuum pump is prized due to its efficient design that allows portability and miniaturization. Because dry scroll vacuum pumps are available in a design that is simpler than other reciprocal pumps, scroll pumps more reliable and less likely to suffer functional failure. A scroll pump, despite its size, can achieve vacuums as high as 7.0x10-3 torr, with pumping speeds of up to 500 L per minute; a system as small as 14 × 7 × 6 inches can still achieve 2.5x10^-1 torr at 60 L per minute. Small and portable dry scroll pumps are perfect for incorporating into OEM systems.

CompanyAgilent TechnologiesAgilent TechnologiesAgilent TechnologiesAgilent Technologies
ItemSH-110 Dry Scroll PumpIDP-3 Dry Scroll PumpTriScroll 600 Dry Scroll Vacuum PumpTriScroll 300 Dry Scroll Vacuum Pump
Catalog NumberSH01101UNIVIDP3A01 / IDP3B01PTS06001UNIVPTS03001UNIV
Price
DescriptionUltimate pressure in a compact package

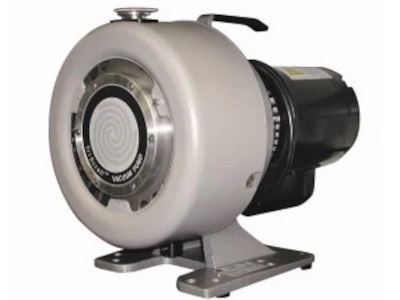

The Agilent Technologies SH-110 is a dry, hermetic scroll pump with industry-leading features designed for easy integration into original-equipment manufacturer (OEM) systems. This single-stage pump has a pumping speed of 110 liters/minute (on 60 Hz power) ...
Delivers low ultimate pressure at high speed

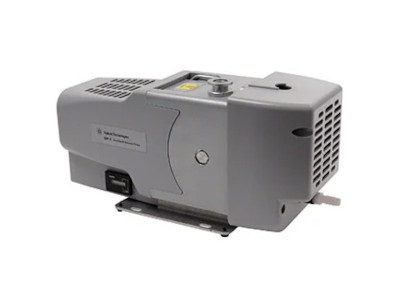

Agilent Technologies’ patented scroll pump technology line provides affordable, oil-free vacuum, can be easily integrated into existing systems, and is suitable for a broad range of both research and industrial applications. The pump creates a vacuum ...
TriScroll dry primary pumps are multi-stage dry vacuum pumps designed and manufactured by Varian for high reliability. The TriScroll pumps produce oil-free vacuum at high speed and low ultimate pressure.

The unique patented TriScroll features provide proven reliability and durability leading to ...
TriScroll dry primary pumps are multi-stage dry vacuum pumps designed and manufactured by Varian for high reliability. The TriScroll pumps produce oil-free vacuum at high speed and low ultimate pressure.

The unique patented TriScroll features provide proven reliability and durability leading to ...
Ultimate Vacuum6.6x10-2 mbar (5.0x10-2 torr)3.3x10-1 mbar (2.5x10-1 torr)9.3x10-3 mbar (7.0x10-3 torr)1.3x10-2 mbar (10-2 torr)
Gas BallastOptionalOptionalAutomatic Ballast Port Automatic Ballast Port
Max. Pumping Speed60 Hz: 110 L/m (4.0 cfm), 50 Hz: 90 L/m (3.3 cfm)60 Hz: 60 L/m, (2.1 cfm), 50 Hz: 50 L/m, (1.8 cfm)50 Hz: 420 l/m (14.8 cfm), 60 Hz: 500 l/m (17.7 cfm)50Hz: 210 l/m (7.4 cfm), 60Hz: 250 l/m (8.8 cfm)
Pumping TechnologyDry Scroll PumpDry Scroll PumpDry Scroll PumpDry Scroll Pump
Control TypeInquireInquireNoneNone
Ult. Vacuum w/ Gas BallastInquireInquireInquireInquire
