Phased Array Flaw Detector

CompanyOlympus NDTOlympus NDTOlympus NDT
ItemOmniScan MX Flaw DetectorEPOCH 1000 Series Flaw DetectorOmniScan MX2 Flaw Detector
Catalog NumberOmniScan MX UTEPOCH 1000 / 1000i / 1000iROmniScan MX2

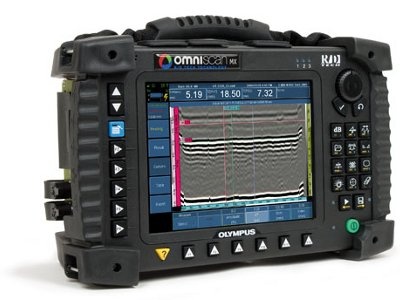

DescriptionThe OmniScan MX UT performs conventional UT and automated inspections and supports TOFD as well as encoded B-scan and C-scan, and full data storage. Allows inspections that simultaneously combine TOFD with conventional pulse echo.

  • Time-of-Flight Diffraction Testing
  • TOFD and Pulse-Echo

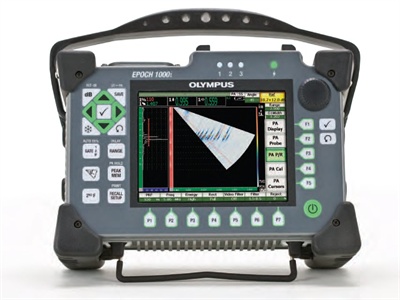

The EPOCH 1000 is an advanced conventional ultrasonic flaw detector that can be upgraded with phased array imaging at an authorized Olympus service center. Key features include: EN12668-1 compliant, 37 digital receiver filter selections, and 6 kHz pulse repetition rate for high speed scanning.

The ...

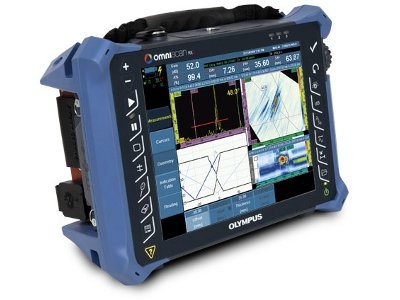

The OmniScan MX2 phased array flaw detector with touch screen interface offers increased testing efficiencies and powerful software features, ensuring superior manual and advanced AUT application performance with fast setups, test cycles, and reporting. It is compatible with all existing phased ...
ApplicationsImmersion and Bubbler Applications, Thickness Gauging, Distance Amplitude CorrectionGeneral weld inspeciton, Crack detection and sizing, Power generation inspections, AWS D1.1/D1.5 weld inspection, Casting and forging defect inspections, DGS/AVG defect sizing, In-line inspections, Composite delamination and defect inspections, Aerospace and maintenance, Automotive and transportationManual and Automated Phased Array Applications
Gain0 to 100 dB0 to 110 dB (depending on mode)0 to 74 dB
Measurement Mode(s)Time-of-Flight, TOFD and Pulse-Echo, 0-Degree Testing, A-Scan, B-Scan, C-ScanThickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min/Max. Depth, Min/Max. AmplitudeInquire
Operating / Storage TempInquire-10C to 50C (Operating Tempreature); -20C to 60C (Battery Storage Temperature )0C to 45C (Operating Temperature), -20C to 70C (Storage Temperature)
Battery Operating TimeInquire8 hrs (conventional UT mode); 7 hrs (phased array mode)> 6 hrs with two batteries
Data StorageA-scan: 6000 A-scans/sec; C-scan: 12,000 (A1, A2, A3, T1, T2, T3)up to 10,000 IDs with Waveform (onboard) or standard 4 GB Compact Flash Card (removable)SDHC Card, Most Standard USB Storage Devices or Ethernet (File 300 MB)
Dimensions(WxDxH) 9.6 x 2.1 x 7.1 in(WxDxH) 9.92 x 4.2 x 6.97 in(WxDxH) 12.8 x 5.1 x 9.3 in
Weight2.2 lbs8.1 lbs11 lbs
Get QuoteInquireInquireInquire
