Lab Consumables

4titude aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR

Our Foil Heat Seal is compatible with polypropylene and polystyrene plates. This seal demonstrates moderate solvent resistance and can be used for low temperature compound storage in DMSO and

4titude aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR

Our Foil Heat Seal is compatible with polypropylene and polystyrene plates. This seal demonstrates moderate solvent resistance and can be used for low temperature compound storage in DMSO and organic solvents and short term room temperature storage. The Foil Heat Seal can be pierced with a pipette tip, manually or by liquid handling robots, or it can be removed by peeling. It can be resealed by applying another Foil Heat Seal directly on top of a previously pierced seal.

This seal is available as sheets, for use with manual and semi-automated sealers, such as our Semi-Automated Sheet Heat Sealer. Also available in multiple roll formats compatible with specified automated heat sealers, such as our Automated Roll Heat Sealer.

A red stripe on the sheet foils clearly indicates the non-sealing surface, for ease of seal orientation and handling.

Key Features:

• Pierceable
• Peelable
• Resealable
• Seal integrity range: -20°C to 110°C
• Moderate solvent resistance
• Autoclavable (121°C)
• Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
• Seals polypropylene and polystyrene plates
• Suitable for short term storage
• Sheet format: 125 x 78mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates, from 12 well to 1536 well
• Roll format: available in a variety of roll dimensions, to suit your choice of automatic heat sealing equipment
• Non-sterile as standard; sterilization available upon request

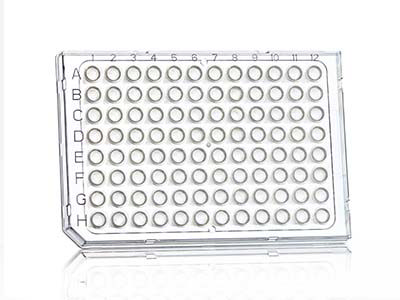

4titude standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200μl, total well capacity: 300μl; universal semi-skirted plate designed for use on standard thermal cyclers. The rigid FrameStar 2-component design eliminates warping and

4titude standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200μl, total well capacity: 300μl; universal semi-skirted plate designed for use on standard thermal cyclers. The rigid FrameStar 2-component design eliminates warping and distortion during PCR, making it ideal for use with robotic systems. The semi-skirted allows for labeling or barcoding for sample tracking.

Key Features:

• Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
• <0.2ml (200μl) working volume, 0.3ml (300μl) total well capacity
• Cut corner at H1
• Rigid polycarbonate frame for added mechanical stability
• Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
• Improved seal integrity due to thermal stability of frame
• Alphanumeric grid reference to aid well and sample identification
• Recommended for low volume PCR
• Compatible with standard multichannel pipettes
• Ideal for use with robotic systems
• Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
• Available barcoded upon request
• Similar plate with a cut corner at A12 for use with ABI^® thermal cyclers and sequencers available: FrameStar 96 Well Semi-Skirted PCR Plate, ABI^® Style

4titude standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200μl, total well capacity: 300μl; designed for use on ABI^® instruments. This ABI^® Style PCR plate offers the benefits of our 2-component design to ABI^®

4titude standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200μl, total well capacity: 300μl; designed for use on ABI^® instruments. This ABI^® Style PCR plate offers the benefits of our 2-component design to ABI^® standard block users. This design combines the advantages of ultra-thin wall polypropylene tubes for optimum PCR results with a rigid polycarbonate skirt and deck for the highest thermal stability. We recommend this semi-skirted plate for use with ABI^® thermal cyclers and sequencers; it can be used directly with ABI^® instruments with no adapters necessary. The only case where this is not true is with the ABI Fast Block thermal cyclers; in this case, using our FrameStar Fast Plate is recommended instead.

Key Features:

• Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time quantitative PCR (RT-qPCR) results
• <0.2ml (200μl) working volume, 0.3ml (300μl) total well capacity
• Rigid polycarbonate frame for added mechanical stability
• Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
• Improved seal integrity due to thermal stability of frame
• Alphanumeric grid reference to aid well and sample identification
• Ideal for use with ABI^® thermal cyclers & sequencers
• Recommended for low volume PCR
• Compatible with standard multichannel pipettes
• Ideal for use with robotic systems
• Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
• Ethylene oxide treated option available for forensic use
• Available barcoded upon request
• Combi packs available (for 4ti-0730/C) with Optically Clear Windowed qPCR Seal (4ti-0565)

4titude clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

Our PCR Seal is a durable transparent polyester film with a strong adhesive layer. The seal enables a high

4titude clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

Our PCR Seal is a durable transparent polyester film with a strong adhesive layer. The seal enables a high integrity and efficiently prevents sample evaporation. It is recommended for PCR, qPCR, and other optical applications (e.g. fluorescence or colorimetric measurements) as well as sample storage.

The PCR Seal is also available in two flexible formats with perforated sheets, to enable tearing into 8 well and 12 well strips, respectively. This allows for sealing of complete 96 well plates, but also individual or multiple divisible plate strips, perfectly complementing these products.

For all adhesive seals, the best sealing results are achieved using the hand held Adhesive Seal Roller (4ti-0502).

Key Features:

• Non-pierceable, please refer to our PCR Foil Seal Strong for a pierceable variant
• Peelable
• Seal integrity range: -20°C to 110°C
• Non-sterile
• Free from DNase, RNase, and human genomic DNA
• Applications: PCR, qPCR
• Removal: features adhesive-free end tabs for easy removal, will not leave a sticky residue on the plate surface following removal
• Sheet format: 135 x 80mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates
• Perforated sheet format: 115 x 100mm, for tearing into 8 well strips
• Perforated sheet format: 137 x 71mm, for tearing into 12 well strips

FluidX 0.3ml dual-coded tubes offer unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities

• Next Generation manufacturing techniques
• Code readable without removing tubes from racks
• Suitable for cryogenic storage

FluidX 0.3ml dual-coded tubes offer unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities

• Next Generation manufacturing techniques
• Code readable without removing tubes from racks
• Suitable for cryogenic storage
• Made from high-quality virgin PP
• Available in 96-well format SBS racks or bulk
• Sealable with screw caps/TPE septum caps

Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers.

Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage. Developed to exceed the demands of sample security, management and tracking in modern high density storage applications.

Each tube features a permanent laser etched 2D code and human readable number on tube base, allowing compatibility with low throughput manual, semi-automated or fully automated workflows on integrated platforms. Both codes are identical and auditing processes guarantee both codes match; standard 2D coding option is white on black.
