Small, Simple, Low Cost PID Control with < 0.003°C Stability

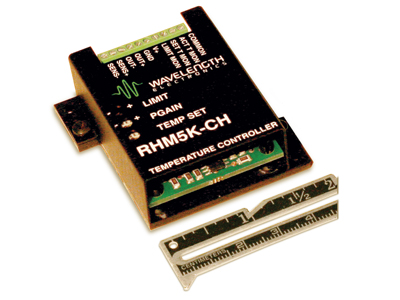

The RHM5K-CH can be used to achieve precision control at off-ambient temperatures. The PID control loop
drives resistive heaters or thermoelectric coolers. The RHM offers a high level of stability and can supply up to
5 A with a small footprint. On-board 12-turn trimpots control temperature setpoint, proportional gain, and
output voltage limit. A single 10-pin terminal strip provides easy access to the DC supply, sensor, resistive
heater, and measurement connections.
The RHM features:
- Compact, 5 A Drive Current
- Single Supply Operation +5 V to +30 V
- < 0.003 °C stability (24-hour)
- Voltage Limit
- > +27 V compliance with +30 V input
- Supports Thermistors, IC sensors or RTDs
- PID Control Loop
- Temperature Setpoint, Proportional Gain, and Limit Voltage are user adjustable
- Easy operation for resistive heater or thermoelectric
The RHM5K-CH is suited for applications where heating or cooling (not both) is required. This product is ideal
for applications where temperature stability is critical and space is tight, such as heated optics (noncondensing
circumstances), CCDs, preheated liquids and chamber stabilization.
Wavelength Electronics has simplified advanced laser diode drive and thermal control technology for OEM and
research applications since 1993. Our high performance specifications are supported by a team of experienced sales and design engineers and a top-notch manufacturing facility. Evaluation quantities are
typically available from stock.
To learn more about the RHM5K-CH Precision Unipolar Temperature Controller and Wavelength's complete
line of high precision, low-noise, ultra-stable laser diode drivers and temperature controllers, call 406-587-
4910, email [email protected] or visit our website, www.teamwavelength.com.
